| Brand | Apricus |
| Product code | Apricus |
| Booster | Electric |
| Tank type | Glass-Lined |
| System element | Bottom-Element |
| Tank size | 400 |
| Model | AE-400-GL-BOT |
APRICUS SOLAR HOT WATER SYSTEMS Buderim

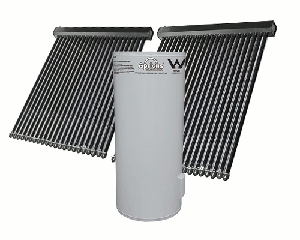

Apricus AE-GL-400-BOT-44 Evacuated Tube Solar Hot Water System
- Apricus Electrical boosted
- 400 litre
- Glass lined tank Bottom Element
- 40 evacuated tubes
- RESOL DetlaSol BS/4 controller
- Grundfos 15 20 Cil solar hot water circulating pump
Apricus residential systems come in a wide range of sizes, with bottom and top element boosting options, several different sized collectors to suit any household, in any climate.
Apricus solar collectors use high efficiency twin-glass evacuated tubes to absorb solar energy and convert it into usable heat. Freeze protected heat pipes transfer heat from within the evacuated tube up to an insulated copper header pipe through which a heat transfer liquid is circulated.
All solar hot water systems should be sized to suit an individuals house hold hot water usage, how ever Apricus has given a rough indication of the system size that you should need shown below:
- 1-3 Bedrooms 22-20 tubes with a 250 Litre tank
- 3-4 Bedrooms 30 tubes with a 315 Litre tank
- 4+ Bedrooms 40 tubes with a 400 Litre tank
Parts for this system
We carry the full Apricus range — controllers from all three vintages, both sensor types, pumps and complete pump stations.
Controllers
- RESOL DeltaSol BS/4 to suit Apricus (1-3 sensors)
- RESOL DeltaSol SLL — the current replacement for the BS/4
- Senztek SolaStat ST Plus 1-3 to suit Apricus
- Senztek SolaStat ST Plus 1-2 to suit Apricus
- Apricus Aestiva 2 Sensor Controller and Apricus Aestiva 3 Sensor Controller
Sensors
Check your plug style before ordering — the old and new styles are not interchangeable.
- Apricus RESOL 20m Roof Sensor
- 20m Roof Sensor to suit Apricus Senztek controllers
- Apricus Aestiva Roof Sensor 20m (new style plug)
- Apricus Roof Sensor for the RESOL DeltaSol AX — early model systems
- Tank Sensor to suit Apricus Senztek Controllers
- RESOL Tank Sensor
Pumps and pump stations
- Grundfos 15-20 CIL 2 — the current standard circulator
- Wilo Star-Z NOVA + Non-Return Valve Kit — for older systems fitted with a Salmson SB 04-15
- Pump Station with RESOL DeltaSol SLL, 1-3 sensors
Element
These tanks take a 3.6 kW bolt-on element — Hot Water Element Bolt-on Incoloy Sickle 3600W. Before ordering, note whether your element sits at the bottom or the middle of the tank. If you are not sure, send us a photo and we will confirm the right one before you buy.
Not sure which part you need? Email sales@solarhotwaterparts.com.au with a photo of your controller or the label on your tank and we'll identify it for you. Same-day dispatch before 3pm, free delivery on orders over $150.
