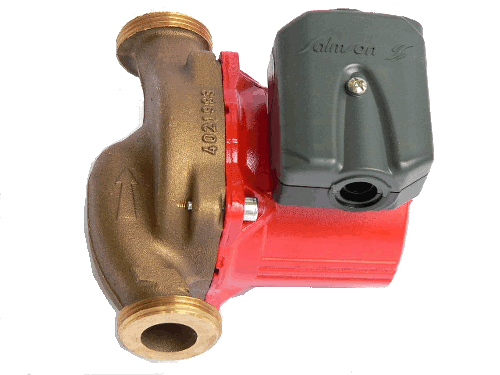

Salmson NSB 25-20b 240V Hot Water Circulating Pump

$200.00 $400.00

Tax includedShipping calculated at checkout

SKU: SHWP0006

Salmson NSB 25-20B 150 is very similar to the Grundfos UPS 20-60N (150) Light Commercial/ Domestic Circulator Pumps

Salmson NSB 25-20B was commonly used in Hills solar hot water systems.

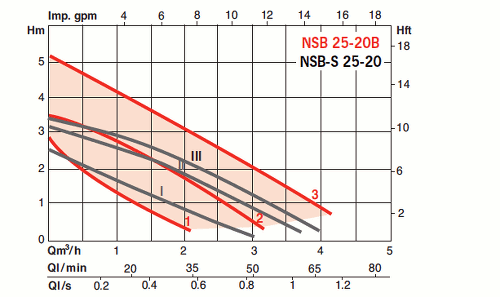

SPECIFICATIONS:
Flow rates up to: 6 m3/h
Heads up to: 6,5 m
Max. operating pressure: 10 bar
Max. loop temperature: +80C
Max. circulator temperature: 110C
Max. ambient temperature: +40C

APPLICATIONS:
This circulator is suitable for drinking water only
Hot water accelerated circulation in distribution loops
Domestic installations and small commercial installations

Greater choice:
- 3 speed
- adaptation accessories enabling replacement without altering the piping
- continued availability of an emergency circulator with perfect irrigation of the domestic hot water loop due to the ALS system
- simultaneous operation possible in the case of increase in flow rate




This product is required to be installed by a licensed trades person as per applicable legislation, and be clear that failure to do so breaches manufacturer’s warranty and may result in injury and/or death, may jeopardise applicable insurance policies or may be in breach of the relevant law. Solar Hot Water Parts recommend that Buyers check with their local authorities in regards to any specific regulations regarding licensing requirements for Plumbing or Electrical work.

Further information for Plumbing & Electrical licensing is available at:

State or Territory Plumbing Licensing Information Electrical Licensing
Information
NSW www.fairtrading.nsw.gov.au www.fairtrading.nsw.gov.au
ACT www.actpla.act.gov.au www.actpla.act.gov.au
QLD www.qbcc.qld.gov.au www.worksafe.qld.gov.au
VIC www.vba.vic.gov.au/ www.esv.vic.gov.au
WA www.commerce.wa.gov.au www.commerce.wa.gov.au
SA www.sa.gov.au www.sa.gov.au
NT www.plumberslicensing.nt.gov.au www.nt.gov.au
TAS www.justice.tas.gov.au www.justice.tas.gov.au








Greater choice:
- 3 speed,
- adaptation accessories enabling replacement without altering the piping.
- continued availability of an emergency circulator with perfect irrigation of the domestic hot water loop due to the ALS system;
- simultaneous operation possible in the case of increase in flow rate.
