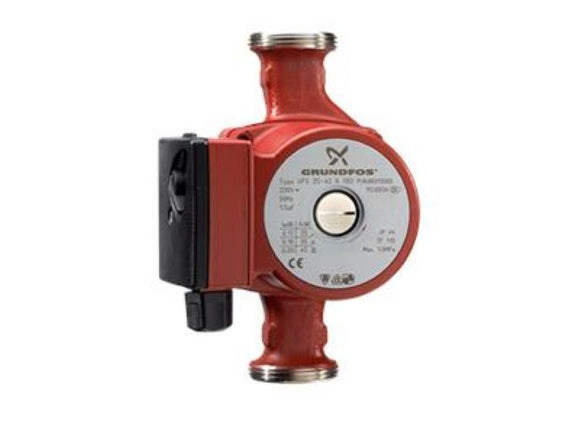

Grundfos 20-60 N 150 Light Commercial Hot Water Circulating Pump
The Grundfos UPS 20-60 N (150) Light Commercial Circulators constitute a complete range of 3-speed circulator pumps. The pumps can be used in both open and closed systems. UPS pumps are of the canned-rotor type, i.e. pump and motor form an integral unit without a shaft seal and with only two gaskets for sealing. The bearings are lubricated by the pumped liquid. Fittings are not included. This circulator is suitable for drinking water only.
It is subject to limited manufacturer's warranty and consumer guarantees as per the Australian Consumer Law.
This product is required to be installed by a licensed trades person as per applicable legislation, and be clear that failure to do so breaches manufacturer’s warranty and may result in injury and/or death, may jeopardise applicable insurance policies or may be in breach of the relevant law. Solar Hot Water Parts recommend that Buyers check with their local authorities in regards to any specific regulations regarding licensing requirements for Plumbing or Electrical work.
Further information for Plumbing & Electrical licensing is available at:
|State or Territory
||Plumbing Licensing Information
For returns please contact us by email first and refer to our returns policy Grundfos items bought online from Solar Hot Water Parts can not be returned directly to Grundfos and must be returned to:
Solar Hot Water Parts
PO BOX 5257,
Maroochydore BC Queensland 4558
+61 7 53578135
For all question and technical support on this product please contact us by email firstname.lastname@example.org
*All images used in this listing are for illustrative purposes only
Barrel union fittings are not included.
The pump is of the canned rotor type, i.e. pump and motor form an integral unit without shaft seal and with only two gaskets for sealing.
The bearings are lubricated by the pumped liquid.
The pump has 3-step speed selector.
The pump is characterized by:
* Ceramic shaft and radial bearings.
* Carbon axial bearing.
* Corrosion-resistant impeller, Composite, PES/PP.
The motor is a 1-phase motor.
No additional motor protection is required.
Pumped liquid: Water
Liquid temperature range: 2 .. 110 °C
Liquid temp: 20 °C
Density: 998.2 kg/m³
TF class: 110
Approvals on nameplate: VDE,GS,CE
Amb. max at 80 dgr C liquid: 40 °C
Maximum operating pressure: 10 bar
Pipe connection: G 1 1/4
Pressure stage: PN 10
Port-to-port length: 180 mm
Power input in speed 1: 50 W
Power input in speed 2: 60 W
Max. power input: 70 W
Mains frequency: 50 Hz
Rated voltage: 1 x 230 V
Current in speed 1: 0.22 A
Current in speed 2: 0.27 A
Current in speed 3: 0.3 A
Capacitor size - run: 2.5 µF
Enclosure class (IEC 34-5): IP44
Insulation class (IEC 85): F
Net weight: 2.8 kg
Gross weight: 3 kg
Shipping volume: 0.004 m3
