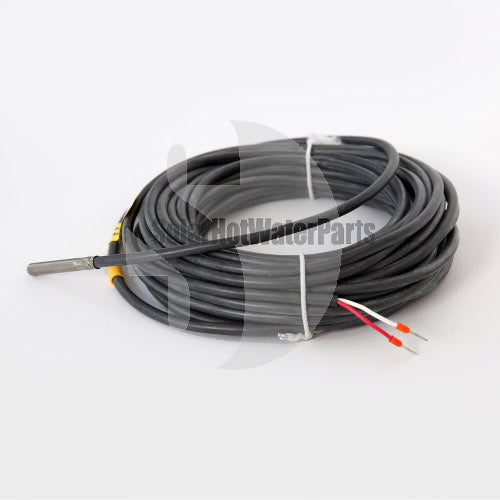

Replacement 20m roof sensor to suit AAE or Edson solar hot water systems using Senztek controllers

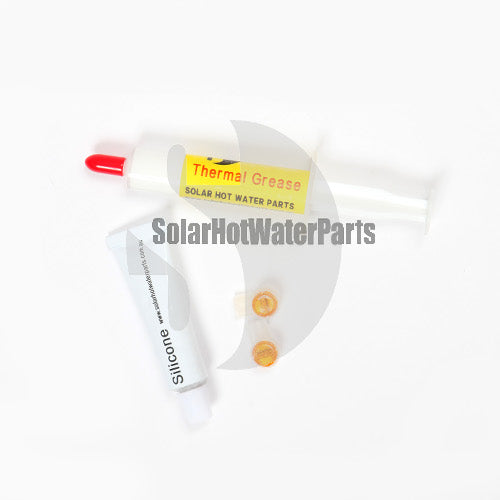

Solar Hot Water Parts roof sensors come with heat transfer paste and joiners.

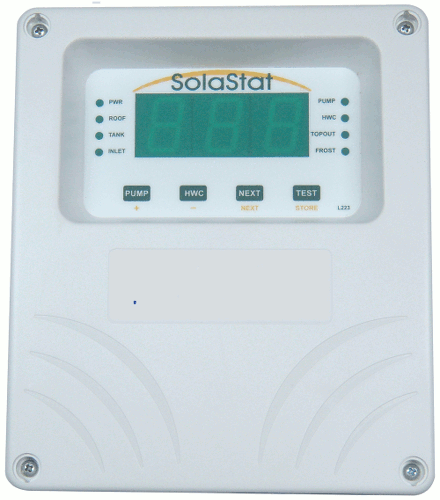

The image of the solar hot water controller in the description has been included to assist you find the correct sensor for your system (controller is not included in sale price). Sensor may look different to the picture in the listing.
If you're unsure which part suits, simply contact us - click here
Which Senztek controller do you have?
Senztek made several controller families, and the sensor you need depends on which one is fitted to your system. Check the badge on the front of the controller:
- SolaStat / SolaStat-Plus — the most common solar circulation controllers, with a digital display. Available as 1-2 sensor, 1-3 sensor and 2-3 sensor versions.
- SolaStat ST Plus — fitted to Apricus and several rebadged systems. Available as 1-2 sensor and 1-3 sensor versions.
- SolaSmart / SolaSmart Plus — the later range, some fitted with a separate touch display. Available as the standard SolaSmart Plus, and in Edson and SolarArk versions.
- SolaSmart Lite — used by Heavenly Solar and Solar Ark. Now discontinued.
- AlphaStat-Plus — controls the electric booster element rather than solar circulation. View the AlphaStat-Plus.
The numbers in the model name are how many sensors the controller uses: a 1-2 runs two sensors (roof and tank), a 1-3 runs three, and a 2-3 will work with either.
Not sure which you have? Email sales@solarhotwaterparts.com.au a photo of the front of your controller and of the plug on the old sensor, and we will confirm exactly which sensor you need.
