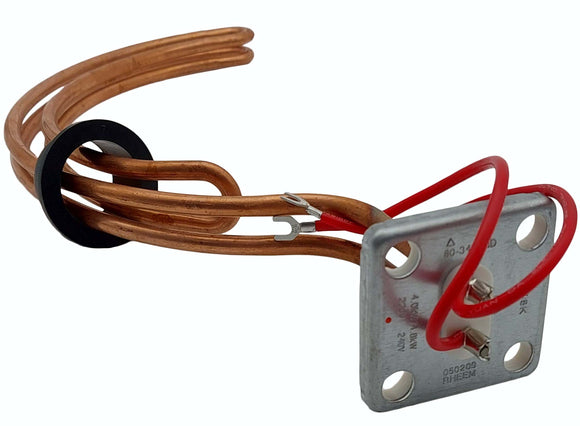

Genuine Rheem sickle element kit, part number 050262K. 4800 W at 240 V, copper sheath, 150 kW/m² watt density, gasket included.
4800 W is the highest of the common ratings and is normally used in larger tanks on off-peak or controlled-load tariffs, where the tank has to recover its full volume overnight.
Specifications
- Rheem part number: 050262K
- Rating: 4800 W at 240 V
- Sheath material: copper
- Watt density: 150 kW/m²
- Shape: sickle (curved)
- Gasket included
What watt density means
Watt density is how much heat the element pushes through each square metre of its surface. 150 kW/m² is the standard, more compact fit. A 120 kW/m² element spreads the same wattage over more surface, so it runs cooler and scales more slowly — which matters most at the high wattages. We stock both.
Copper or Incoloy?
Copper is the standard sheath and suits most mains water. If your water is hard or from a bore, or elements have been failing early, fit Incoloy 800 instead.
Fitting notes
- Fit the supplied gasket — never re-use the old one.
- Clean the flange face back to bare metal and clear any calcification.
- Pull the bolts up evenly in a cross pattern. Do not over-tighten.
- Check the circuit and tariff support 4800 W before going up from a lower wattage — that is an electrician's call.
Genuine Rheem part, not an aftermarket equivalent. Unsure which element your tank takes? Send us the model number from the data plate and we will confirm before you order. Installation by a licensed tradesperson.
