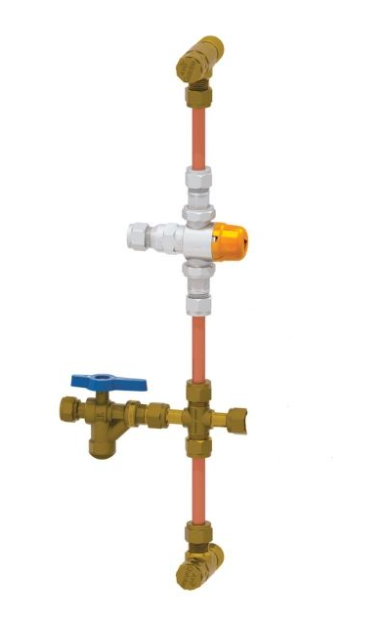

SHWP1304 — AVG Quickie R Kit QIK15RCVHP-LF
The AVG Quickie R CVHP is the solar-rated version of AVG's raised storage quick-installation kit — all the valves, fittings and insulation to plumb the tank, in one box. The HP kit pairs the NRI-PRV combination valve (non-return, isolation and pressure reduction in one body) with AVG's high-performance TVA15CHP tempering valve, rated for hot water inlet temperatures of 65–99°C. This makes it the correct kit for solar hot water, heat pump and continuous flow systems, where standard tempering valves are not rated for the sustained high storage temperatures. No seasonal adjustment required. 15mm (1/2") connections, lead-free brass throughout.
What's in the kit
- 3-way hot water outlet
- 3-way cold water inlet
- 4-way cross (compression and loose nut)
- NRI-PRV combination valve (non-return, isolation and pressure reduction)
- TVA15CHP high-performance solar-rated tempering valve
- PTR drain line union
- 15mm brass plug (caps the 4-way tee where no ECV is fitted)
- UV-stabilised, water-resistant insulation covers for all valves and fittings, as per AS/NZS 3500
Why plumbers use it
Everything in one box — no missing parts on the job. Loose-nut connections cut down on thread tape, every install assembles the same way, and the insulation covers are included to meet state requirements. An expansion control valve can be added at the 4-way tee where local regulations require one.
All wetted components comply with the lead-free requirements of the National Construction Code (weighted average lead content below 0.25%). WaterMark certified.
Download the AVG Quickie R specification sheet (PDF)
*ECV not included
